NH-RVS Fire-Resistant Twisted Pair Copper Wire for Fire Alarms & Smoke Detectors (Available in Various Colors)
Home / Products / Fire-resistant Wires / NH-RVS Fire-Resistant Twisted Pair Copper Wire for Fire Alarms & Smoke Detectors (Available in Various Colors)
  • NH-RVS Fire-Resistant Twisted Pair Copper Wire for Fire Alarms & Smoke Detectors (Available in Various Colors)
  • NH-RVS Fire-Resistant Twisted Pair Copper Wire for Fire Alarms & Smoke Detectors (Available in Various Colors)
  • Product Details
  • FAQ



Rated Voltage 450/750V PVC-Insulated Fire-Resistant Wire

Cable Model

NH- RVS-300/300V


Scope of Application

This product is suitable for flexible electrical wires used in electrical appliances, instruments, and power lighting with a rated AC voltage of 300/300V.

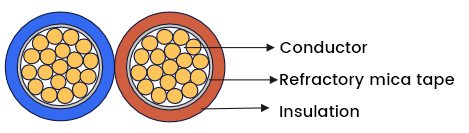

Cable Structure

Conductor

The 6th type of soft copper conductor


Insulation

Polyvinyl chloride (PVC)


Product Standards

JB/T 8734.3-2016
GB/T 19666-2019


Specification Range

1 core: 0.75~4 mm²


Insulation Color

As per customer requirements

Technical Parameters

Rated Voltage(U₀/U)

300/300V


Temperature Rating

Maximum conductor operating temperature: +70℃
Ambient temperature: -15℃ to +40℃
Cable laying temperature: Not lower than 0℃ (If the ambient temperature is lower than 0℃, the cable should be preheated)


Minimum Bending Radius

6D

Note: D represents the actual outer diameter of the cable.


Laying Method

Surface mounting, conduit installation, trunking installation, etc.

Specification

mm²

Maximum diameter of a single wire in a stranded conductor

mm

Insulation thickness specified value

mm

Upper limit of average outer diameter

mm

Maximum conductor resistance at 20℃

Ω/km

Minimum insulation resistance at 70℃

MΩ·km

2×0.75 0.16 0.8 7.0 26.0  0.014
2×1 0.16 0.8 7.4 19.5 0.013
2×1.5 0.16 0.8 8.0 13.3 0.012
2×2.5 0.16 0.8 9.0 7.98 0.0095
2×4 0.16 0.8 10.3 4.95 0.0079
