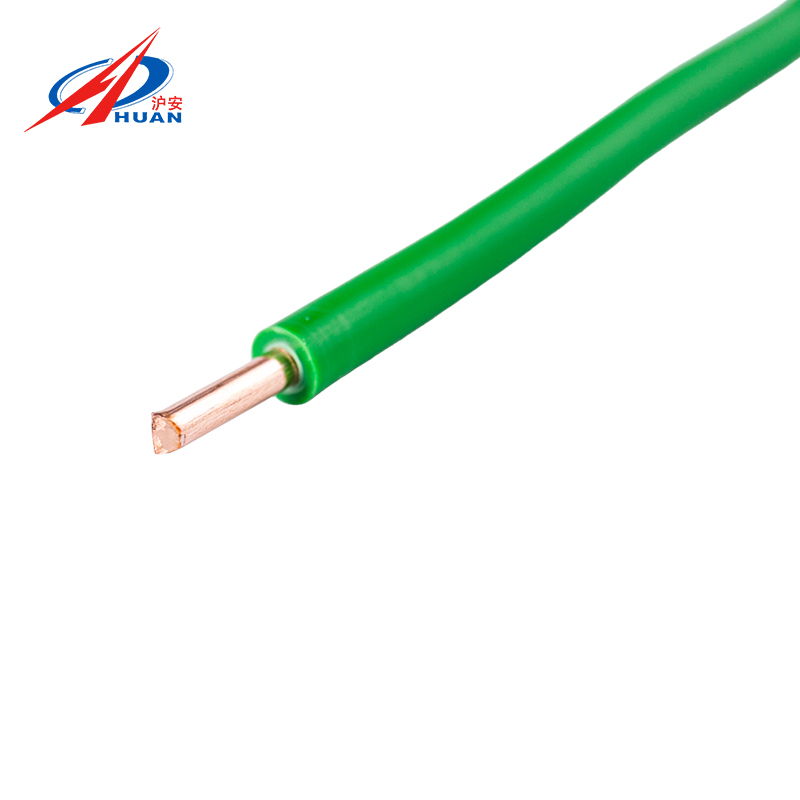

BV PVC Insulated Single-Core Strand Conductor Rigid Wire for Home Renovation & Construction
Home / Products / Electrical Wires / BV PVC Insulated Single-Core Strand Conductor Rigid Wire for Home Renovation & Construction
  • BV PVC Insulated Single-Core Strand Conductor Rigid Wire for Home Renovation & Construction
  • BV PVC Insulated Single-Core Strand Conductor Rigid Wire for Home Renovation & Construction
  • BV PVC Insulated Single-Core Strand Conductor Rigid Wire for Home Renovation & Construction
  • BV PVC Insulated Single-Core Strand Conductor Rigid Wire for Home Renovation & Construction
  • Product Details
  • FAQ



Rated Voltage 450/750V PVC-Insulated Flame-Retardant Wire

Cable Model

Z(A/B/C/D)- 60227IEC(01)BV-450/750V


Scope of Application

This product is suitable for fixed wiring in power installations with a rated AC voltage of 450/750 V or below.


Cable Structure

Conductor

Conductors of 10 mm² and above feature a circular stranded structure, while conductors of 6 mm² and below feature a single solid-core structure.

Insulation

Polyvinyl chloride(PVC)


Product Standards

GB/T 5023.3-2008

GB/T 19666-2019


Specification Range

1 core: 1.5~240 mm²


Insulation Color

As per customer requirements

Technical Parameters

Rated Voltage(U₀/U)

450/750V


Temperature Rating

Maximum Conductor Operating Temperature: +70°C

Ambient Operating Temperature: -15°C to +40°C

Cable Installation Temperature: Not lower than 0°C (If the ambient temperature is below 0°C, the cable must be preheated.)


Minimum Bending Radius

6D

Note: D represents the actual outer diameter of the cable.


Laying Method

Surface mounting, conduit installation, trunking installation, etc.

Specification

mm²

Minimum number of single wires in a stranded conductor

Insulation thickness specified value

mm

Average outer diameter

mm

Maximum conductor resistance at 20℃

Ω/km

Minimum insulation resistance at 70℃

MΩ·km

Lower limit Upper limit
1.5 1 0.7 2.6 3.2 12.1 0.011
2.5 1 0.8 3.2 3.9 7.41 0.010
4 1 0.8 3.6 4.4 4.61 0.0085
6 1 0.8 4.1 5.0 3.08 0.0070
10 6 1.0 5.6 6.7 1.83 0.0065
16 6 1.0 5.6 6.0 1.15 0.0050
25 6 1.2 8.7 9.7 0.727 0.0050
35 6 1.2 9.0 10.9 0.524 0.0043
50 6 1.4 10.6 12.8 0.387 0.0043
70 12 1.4 12.1 14.6 0.268 0.0035
95 15 1.6 14.1 17.1 0.193 0.0035
120 18 1.6 15.6 18.8 0.153 0.0032
150 18 1.8 17.3 20.9 0.124 0.0032
185 30 2.0 19.3 23.3 0.0991 0.0032
240 34 2.2 22.0 26.6 0.0754 0.0032
