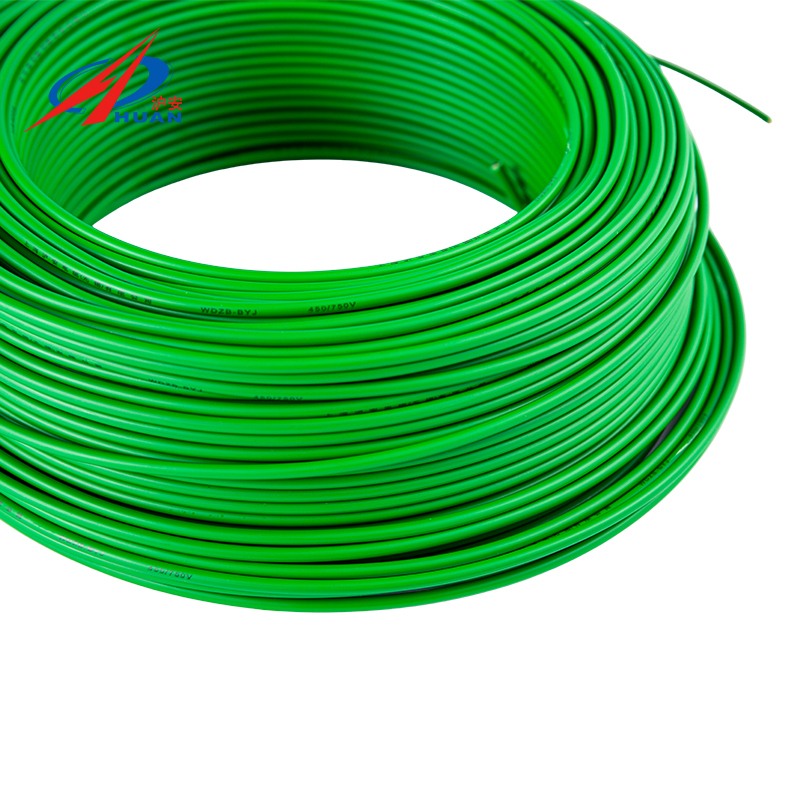

WDZN-BYJ 450/750V and below cross-linked polyolefin insulated fire-resistant wire
Home / Products / Eco-friendly Cables / WDZN-BYJ 450/750V and below cross-linked polyolefin insulated fire-resistant wire
  • WDZN-BYJ 450/750V and below cross-linked polyolefin insulated fire-resistant wire
  • WDZN-BYJ 450/750V and below cross-linked polyolefin insulated fire-resistant wire
  • Product Details
  • FAQ



Cable Model

WDZ(A、B、C)N-BYJ

Voltage Rating
450/750 V

Application Scope

This product is suitable for fixed wiring with a rated voltage of 450/750 V and below, with a heat resistance of 105°C, as well as internal connections of power and electronic equipment.

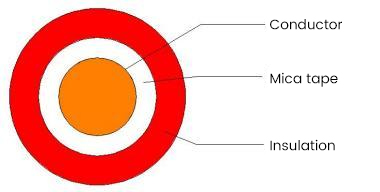

Cable Structure
Conductor
Solid conductor: Class 1 copper conductor
Stranded conductor: Class 2 copper conductor

Insulation

Low-smoke halogen-free cross-linked polyolefin

Product Standards

JB/T 10491-2022
GB/T 19666-2019

Specification Range

Core count: 1 core
Cross-sectional area: 0.5~240 mm²

Rated Voltage (U₀/U)
450/750V

Temperature Rating
Maximum operating temperature of conductor: +105°C
Ambient operating temperature: -15°C ~ +40°C
Cable laying temperature: Not lower than 0°C

Minimum Bending Radius

6D (D stands for the actual outer diameter of the cable)

Laying Methods

Open wiring, conduit laying, trunking laying, etc.
