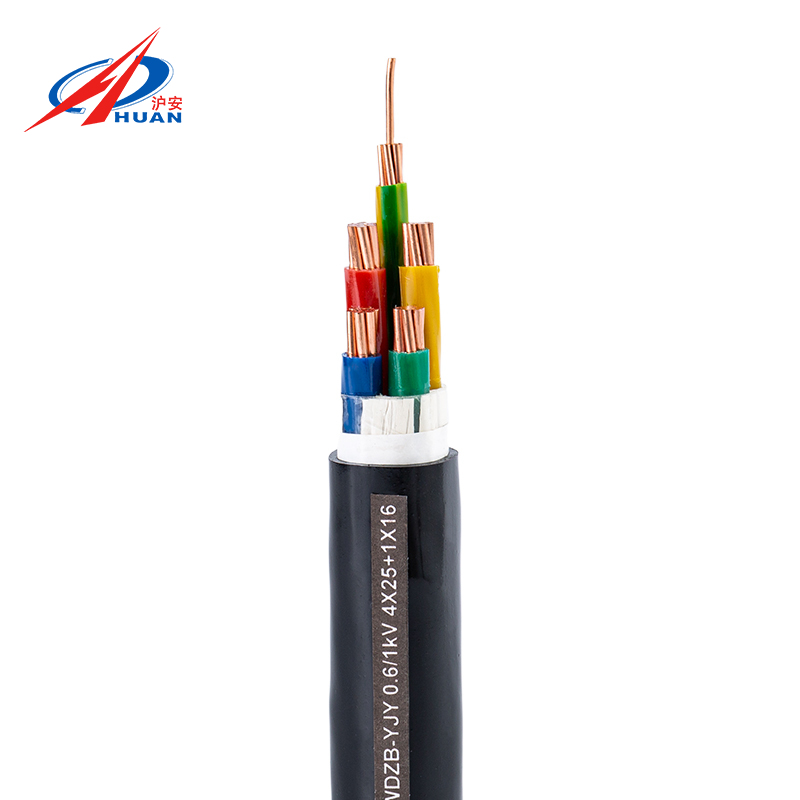

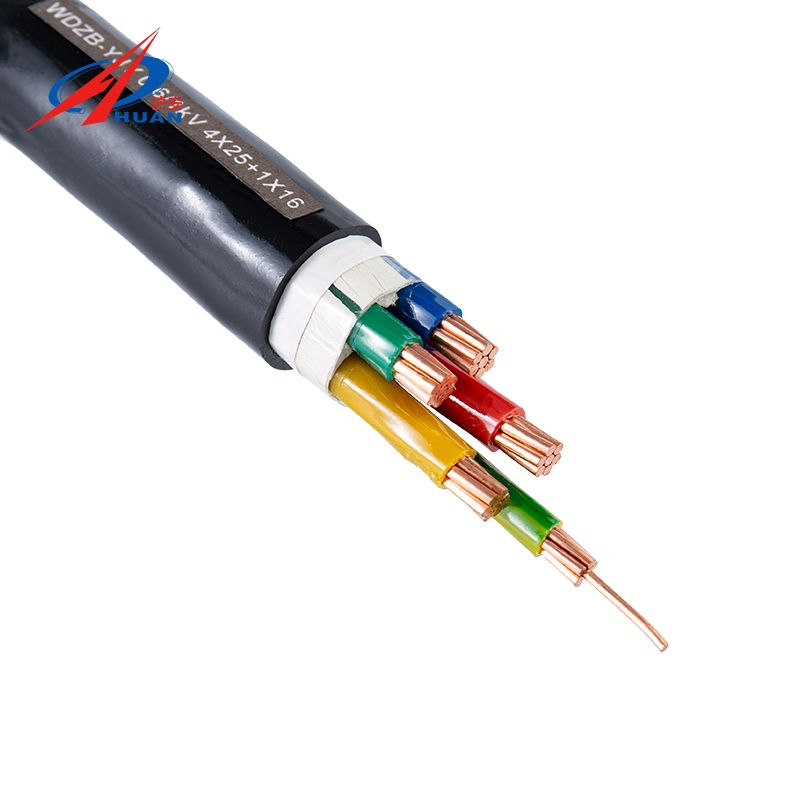

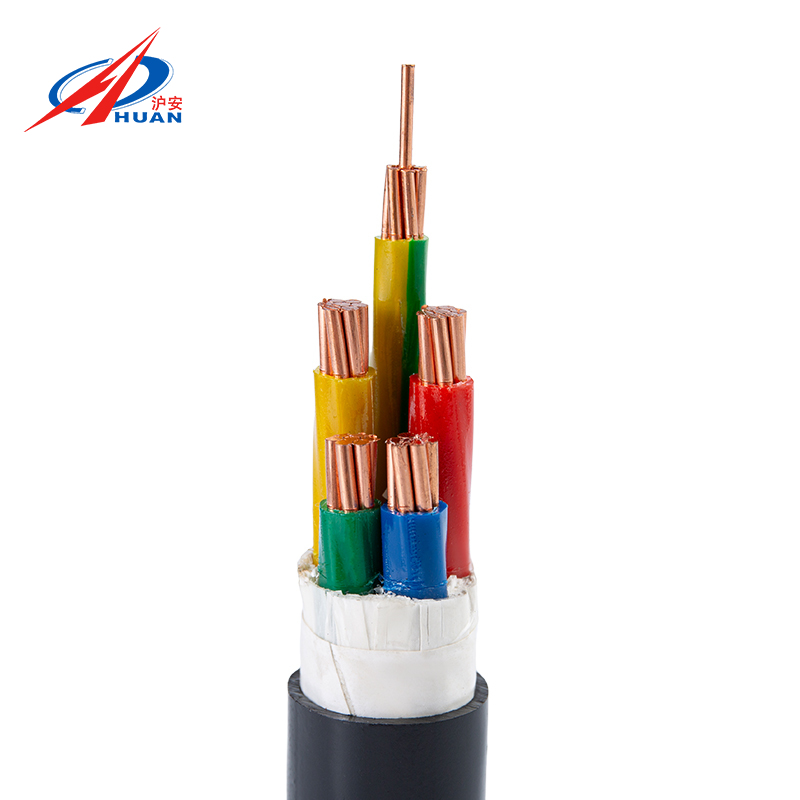

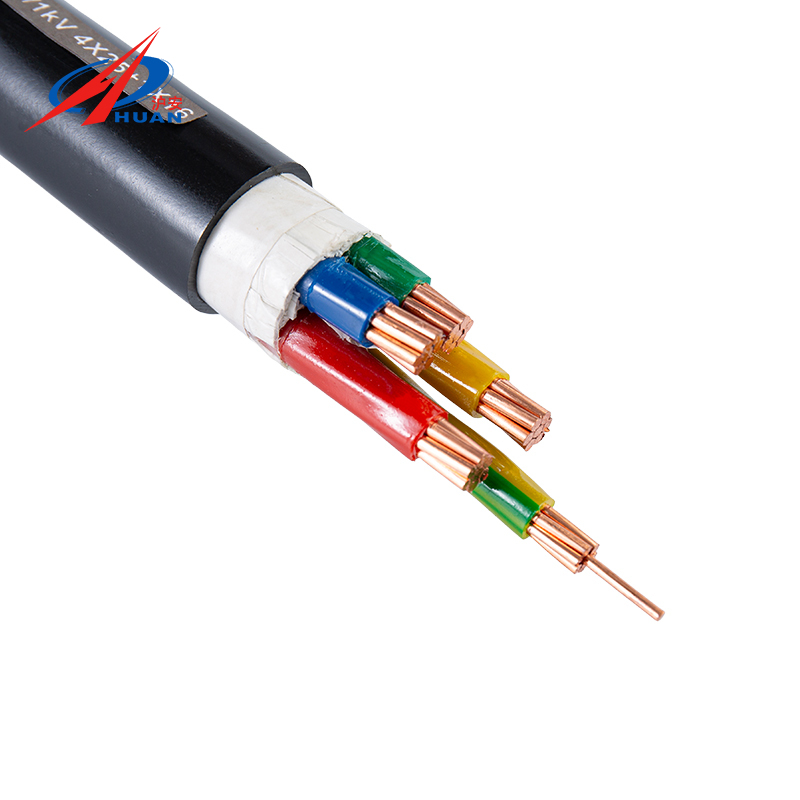

Cable Model
WDZ(A/B/C)-YJY-0.6/1kV

Application Scope
This product is applied to 50Hz AC circuits with rated voltage not exceeding 0.6/1kV for power transmission and distribution.

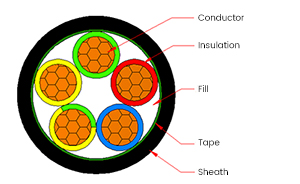

Cable Structure

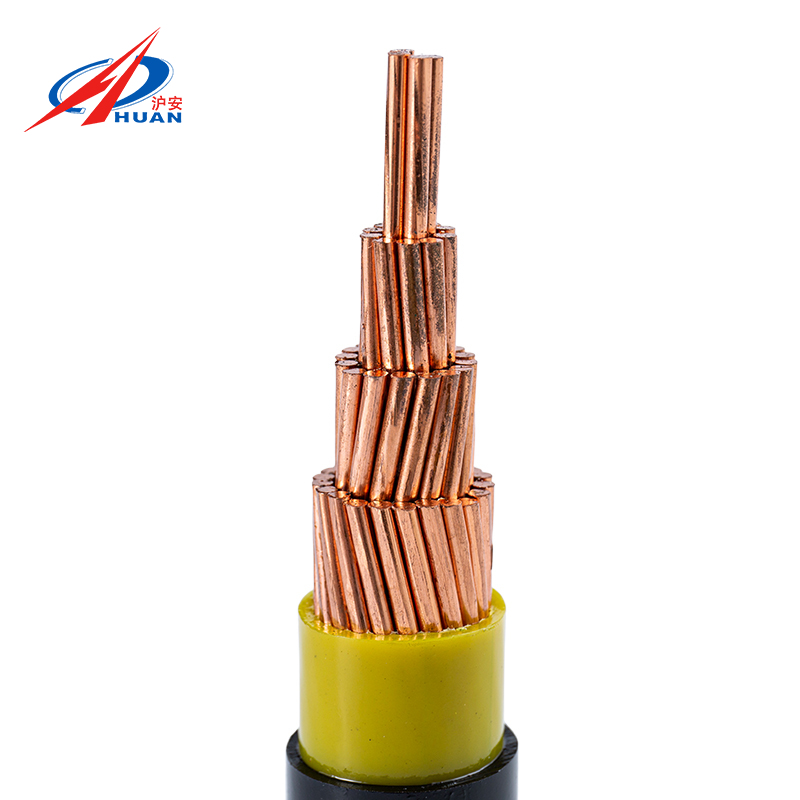

Conductor
Class 1 or Class 2 copper conductor

Insulation
Cross-linked Polyethylene (XLPE)

Sheath
Low-smoke halogen-free flame-retardant polyolefin

Product Standards
GB/T 12706.1-2020
GB/T 19666-2019

Specification Range
1 core: 1.5~1000 mm²
2 cores: 1.5~400 mm²
3 cores: 1.5~400 mm²
4 cores: 1.5~400 mm²
5 cores: 1.5~400 mm²
3+1 cores: 2.5~400 mm²
3+2 cores: 2.5~400 mm²
4+1 cores: 2.5~400 mm²

Core Identification
2 cores: ●Red ●Blue
3 cores: ●Yellow ●Green ●Red, or ●Red ●Blue ●Yellow/Green
4 cores: ●Yellow ●Green ●Red ●Blue
5 cores: ●Yellow ●Green ●Red ●Blue ●Yellow/Green

Sheath Color
●Black

Rated Voltage (U₀/U)
0.6/1kV

Maximum System Voltage (Uₘ)
1.2kV

Temperature Rating
Maximum operating temperature of conductor: +90°C
Ambient operating temperature: -15°C ~ +45°C
Cable laying temperature: Not lower than 0°C (Cable preheating is required when ambient temperature is below 0°C)

Minimum Bending Radius
Single-core cable: 20D
Multi-core cable: 15D
Note: D denotes the actual outer diameter of the cable

Laying Methods
Conduit laying, shallow trench laying, cable trench laying, tunnel laying, interlayer laying, supported overhead laying, suspended overhead laying, etc.

WDZ-YJY-0.6/1kV Cable Structural Parameters (1-Core)
Specification (mm²)	Conductor Diameter (mm)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approximate Cable Outer Diameter (mm)	Approximate Cable Weight (kg/km)
1×1.5	1.38	0.7	1.4	5.7	46
1×2.5	1.78	0.7	1.4	6.1	59
1×4	2.25	0.7	1.4	6.6	76
1×6	2.76	0.7	1.4	7.1	98
1×10	4	0.7	1.4	8.3	143
1×16	5	0.7	1.4	9.9	214
1×25	6.1	0.9	1.4	11.4	313
1×35	7.2	0.9	1.4	12.5	409
1×50	8.4	1	1.4	14.3	544
1×70	10	1.1	1.4	16.1	752
1×95	12	1.1	1.5	18.3	1016
1×120	13	1.2	1.5	19.5	1251
1×150	14.9	1.4	1.6	22.1	1546
1×185	16.5	1.6	1.7	24.5	1932
1×240	18.4	1.7	1.8	26.9	2514
1×300	21	1.8	1.8	29.7	3105
1×400	23.4	2	2	33	3965
1×500	26.6	2.2	2.1	36.8	5037
1×630	30	2.4	2.2	40.8	6389
1×800	34	2.6	2.3	45.7	8106
1×1000	38.2	2.8	2.5	50.7	10120

WDZ-YJY-0.6/1kV Cable Structural Parameters - Table 2 (2-Core)
Specification (mm²)	Conductor Diameter (mm)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approximate Cable Outer Diameter (mm)	Approximate Cable Weight (kg/km)
2×1.5	1.38	0.7	1.8	10	122
2×2.5	1.78	0.7	1.8	10.8	152
2×4	2.25	0.7	1.8	11.7	193
2×6	2.76	0.7	1.8	12.7	245
2×10	4	0.7	1.8	15.2	397
2×16	5	0.7	1.8	17.2	555
2×25	6.1	0.9	1.8	20.2	813
2×35	7.2	0.9	1.8	22.4	1057
2×50	8.4	1	1.8	26	1443
2×70	10	1.1	1.8	29.6	1977
2×95	12	1.1	2	34	2670
2×120	13	1.2	2.1	36.6	3260
2×150	14.9	1.4	2.2	41.5	4073
2×185	16.5	1.6	2.3	45.7	5011
2×240	18.4	1.7	2.5	49.8	6329
2×300	21	1.8	2.7	55.8	7909
2×400	23.4	2	2.9	61.8	10013

WDZ-YJY-0.6/1kV 3-Core Cable Structural Parameters
Specification (mm²)	Conductor Diameter (mm)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approximate Cable Outer Diameter (mm)	Approximate Cable Weight (kg/km)
3×1.5	1.38	0.7	1.8	10.4	141
3×2.5	1.78	0.7	1.8	11.3	182
3×4	2.25	0.7	1.8	12.3	238
3×6	2.76	0.7	1.8	13.4	310
3×10	4	0.7	1.8	16	487
3×16	5	0.7	1.8	18.2	698
3×25	6.1	0.9	1.8	21.5	1040
3×35	7.2	0.9	1.8	23.9	1368
3×50	8.4	1	1.8	27.7	1860
3×70	10	1.1	1.9	31.8	2590
3×95	12	1.1	2	36.3	3491
3×120	13	1.2	2.1	39.1	4295
3×150	14.9	1.4	2.3	44.5	5361
3×185	16.5	1.6	2.4	49.1	6621
3×240	18.4	1.7	2.6	53.5	8432
3×300	21	1.8	2.8	59.9	10524
3×400	23.4	2	3.1	66.6	13415

WDZ-YJY-0.6/1kV 4-Core Cable Structural Parameters
Specification (mm²)	Conductor Diameter (mm)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approximate Cable Outer Diameter (mm)	Approximate Cable Weight (kg/km)
4×1.5	1.38	0.7	1.8	11.2	169
4×2.5	1.78	0.7	1.8	12.2	220
4×4	2.25	0.7	1.8	13.3	292
4×6	2.76	0.7	1.8	14.5	384
4×10	4	0.7	1.8	17.5	609
4×16	5	0.7	1.8	19.9	877
4×25	6.1	0.9	1.8	23.6	1317
4×35	7.2	0.9	1.8	26.4	1757
4×50	8.4	1	1.9	30.6	2373
4×70	10	1.1	2	35.2	3319
4×95	12	1.1	2.1	40.3	4491
4×120	13	1.2	2.3	43.6	5557
4×150	14.9	1.4	2.4	49.4	6902
4×185	16.5	1.6	2.6	54.7	8553
4×240	18.4	1.7	2.8	59.6	10918
4×300	21	1.8	3	66.8	13636
4×400	23.4	2	3.3	74.2	17385

WDZ-YJY-0.6/1kV 5-Core Cable Structural Parameters
Specification (mm²)	Conductor Diameter (mm)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approximate Cable Outer Diameter (mm)	Approximate Cable Weight (kg/km)
5×1.5	1.38	0.7	1.8	12	196
5×2.5	1.78	0.7	1.8	13.1	260
5×4	2.25	0.7	1.8	14.4	349
5×6	2.76	0.7	1.8	15.7	462
5×10	4	0.7	1.8	19	736
5×16	5	0.7	1.8	21.7	1069
5×25	6.1	0.9	1.8	26	1634
5×35	7.2	0.9	1.8	29	2161
5×50	8.4	1	2	33.8	2932
5×70	10	1.1	2.1	38.9	4106
5×95	12	1.1	2.3	44.7	5574
5×120	13	1.2	2.4	48.1	6870
5×150	14.9	1.4	2.6	54.8	8570
5×185	16.5	1.6	2.8	60.6	10609
5×240	18.4	1.7	3	66.1	13562
5×300	21	1.8	3.2	74.1	16940
5×400	23.4	2	3.6	82.5	21639

WDZ-YJY-0.6/1kV 3+1-Core Cable Structural Parameters
Specification (mm²)	Conductor Diameter (mm)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approximate Cable Outer Diameter (mm)	Approximate Cable Weight (kg/km)
3×2.5+1×1.5	1.78/1.38	0.7/0.7	1.8	11.9	206
3×4+1×2.5	2.25/1.78	0.7/0.7	1.8	13	274
3×6+1×4	2.76/2.25	0.7/0.7	1.8	14.2	361
3×10+1×6	4.0/2.76	0.7/0.7	1.8	16.7	554
3×16+1×10	5.0/4.0	0.7/0.7	1.8	19.2	804
3×25+1×16	6.1/5.0	0.9/0.7	1.8	22.6	1200
3×35+1×16	7.2/5.0	0.9/0.7	1.8	24.8	1531
3×50+1×25	8.4/6.1	1.0/0.9	1.8	28.8	2097
3×70+1×35	10.0/7.2	1.1/0.9	1.9	33	2912
3×95+1×50	12.0/8.4	1.1/1.0	2.1	37.9	3941
3×120+1×70	13.0/10.0	1.2/1.1	2.2	41.3	4961
3×150+1×70	14.9/10.0	1.4/1.1	2.3	46.1	5988
3×185+1×95	16.5/12.0	1.6/1.1	2.5	51.2	7502
3×240+1×120	18.4/13.0	1.7/1.2	2.7	55.8	9526
3×300+1×150	21.0/14.9	1.8/1.4	2.9	62.6	11903
3×400+1×185	23.4/16.5	2.0/1.6	3.1	69.3	15082

Specification (mm²)	Conductor Diameter (mm)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approximate Cable Outer Diameter (mm)	Approximate Cable Weight (kg/km)
3×2.5+2×1.5	1.78/1.38	0.7/0.7	1.8	12.7	235
3×4+2×2.5	2.25/1.78	0.7/0.7	1.8	13.9	314
3×6+2×4	2.76/2.25	0.7/0.7	1.8	15.2	417
3×10+2×6	4.0/2.76	0.7/0.7	1.8	17.8	639
3×16+2×10	5.0/4.0	0.7/0.7	1.8	20.7	938
3×25+2×16	6.1/5.0	0.9/0.7	1.8	24.5	1419
3×35+2×16	7.2/5.0	0.9/0.7	1.8	26.5	1739
3×50+2×25	8.4/6.1	1.0/0.9	1.9	31.2	2436
3×70+2×35	10.0/7.2	1.1/0.9	2	35.6	3358
3×95+2×50	12.0/8.4	1.1/1.0	2.2	40.9	4539
3×120+2×70	13.0/10.0	1.2/1.1	2.3	44.8	5781
3×150+2×70	14.9/10.0	1.4/1.1	2.4	49.3	6814
3×185+2×95	16.5/12.0	1.6/1.1	2.6	55	8623
3×240+2×120	18.4/13.5	1.7/1.2	2.8	60.1	10927
3×300+2×150	21.0/14.9	1.8/1.4	3	67.2	13614
3×400+2×185	23.4/16.5	2.0/1.6	3.3	74.7	17258

Specification (mm²)	Conductor Diameter (mm)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approximate Cable Outer Diameter (mm)	Approximate Cable Weight (kg/km)
4×2.5+1×1.5	1.78/1.38	0.7/0.7	1.8	12.9	247
4×4+1×2.5	2.25/1.78	0.7/0.7	1.8	14.1	330
4×6+1×4	2.76/2.25	0.7/0.7	1.8	15.4	438
4×10+1×6	4.0/2.76	0.7/0.7	1.8	18.4	687
4×16+1×10	5.0/4.0	0.7/0.7	1.8	21.2	1003
4×25+1×16	6.1/5.0	0.9/0.7	1.8	25.2	1522
4×35+1×16	7.2/5.0	0.9/0.7	1.8	27.7	1944
4×50+1×25	8.4/6.1	1.0/0.9	1.9	32.3	2666
4×70+1×35	10.0/7.2	1.1/0.9	2.1	37.3	3733
4×95+1×50	12.0/8.4	1.1/1.0	2.2	42.6	5031
4×120+1×70	13.0/10.0	1.2/1.1	2.4	46.5	6327
4×150+1×70	14.9/10.0	1.4/1.1	2.5	51.9	7663
4×185+1×95	16.5/12.0	1.6/1.1	2.7	57.7	9592
4×240+1×120	18.4/13.5	1.7/1.2	2.9	63	12218
4×300+1×150	21.0/14.9	1.8/1.4	3.1	70.5	15236
4×400+1×185	23.4/16.5	2.0/1.6	3.4	78.3	19372

WDZ-YJY-0.6/1kV Cable Long-term Allowable Current Carrying Capacity (Table 9)
	Single-core		Two-core	Three to Five Cores
Arrangement	Triangular arrangement ¹)	Flat arrangement ²)	Single cable laid separately ³)	Single cable laid separately ³)
Cross-section (mm²)	Current Carrying Capacity (A)	Current Carrying Capacity (A)	Current Carrying Capacity (A)	Current Carrying Capacity (A)
1.5	26	32	28	20
2.5	31	41	33	28
4	41	54	43	37
6	52	68	55	47
10	71	93	76	65
16	92	120	97	84
25	120	155	130	110
35	150	195	160	135
50	180	235	195	170
70	230	295	245	215
95	285	370	305	265
120	335	430	355	310
150	385	495	405	350
185	450	570	465	405
240	535	680		480
300	620	790		555
400	720	920		640
500	835	1080
630	960	1260
800	1110	1470
1000	1230	1630
Operating Temperature		90℃
Ambient Temperature		40℃

Notes:
1) Cables are in contact with each other when arranged in a triangle.
2) The center distance between cables is 2 times the cable outer diameter when arranged in a flat plane.
3) Single cable is laid separately (i.e., adjacent cables have no thermal effect on this cable).

Current Carrying Capacity Correction Coefficient Table for Different Ambient Temperatures (Table 10)
Conductor Operating Temperature (℃)	Ambient Temperature (℃) (in Air)
Conductor Operating Temperature (℃)	20℃	25℃	30℃	35℃	40℃	45℃	50℃	55℃
90	1.23	1.17	1.12	1.06	1	0.94	0.87	0.81

WDZ-YJY-0.6/1kV Cable Conductor DC & AC Resistance
Cross-section (mm²)	Max. DC Resistance of Conductor at 20℃ (Ω/km)	Max. AC Resistance of Conductor at 20℃ (Ω/km)
1.5	12.1	15.4
2.5	7.41	9.45
4	4.61	5.88
6	3.08	3.93
10	1.83	2.33
16	1.15	1.47
25	0.727	0.972
35	0.524	0.668
50	0.387	0.493
70	0.268	0.342
95	0.193	0.246
120	0.153	0.196
150	0.124	0.159
185	0.0991	0.128
240	0.0754	0.0982
300	0.0601	0.0792
400	0.047	0.0631
500	0.0366	0.0509
630	0.0283	0.0414

WDZ-YJY-0.6/1kV Cable Conductor Allowable Short-circuit Current
Cross-section (mm²)	Short-circuit Duration (s) kA
Cross-section (mm²)	1s	2s	3s
1.5	0.12	0.08	0.07
2.5	0.32	0.22	0.18
4	0.5	0.36	0.29
6	0.76	0.54	0.44
10	1.3	0.89	0.73
16	2	4.1	1.2
25	3.8	2.7	2.2
35	5.2	3.7	3
50	7.6	5.3	4.3
70	10.3	7.3	6
95	13.9	9.9	8.1
120	17.5	12.5	10.2
150	21.8	15.5	12.8
185	26.9	19.1	15.7
240	34.8	24.7	20.3
300	43.4	30.9	25.3
400	57.8	41.1	33.6
500	72.2	51.3	42
630	90.9	64.5	52.8
