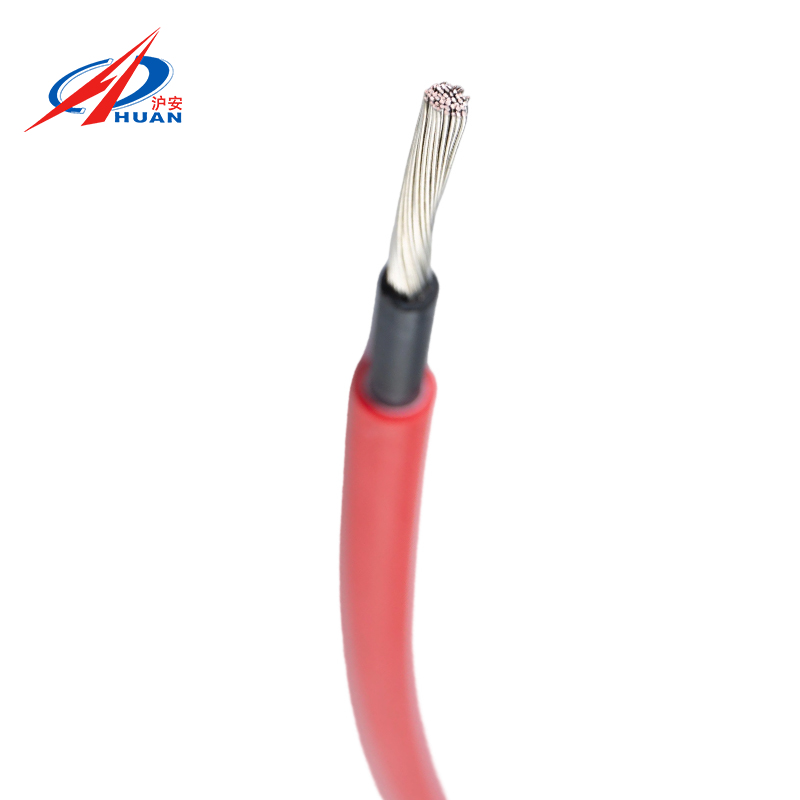

PV1-F TUV 2PfG1169 German standard high-performance photovoltaic DC cable
Home / Products / Photovoltaic Cables / PV1-F TUV 2PfG1169 German standard high-performance photovoltaic DC cable
  • PV1-F TUV 2PfG1169 German standard high-performance photovoltaic DC cable
  • PV1-F TUV 2PfG1169 German standard high-performance photovoltaic DC cable
  • PV1-F TUV 2PfG1169 German standard high-performance photovoltaic DC cable
  • PV1-F TUV 2PfG1169 German standard high-performance photovoltaic DC cable
  • Product Details
  • FAQ

Cable Type

PV1-F


Application

This product is suitable for connecting indoor and outdoor solar photovoltaic system circuits using AC 0.6/1kV or DC 1500V.


Cable Structure

Conductor

The conductor is a Category 5 tinned copper wire stranded structure.

Insulation

125℃ Low Smoke Halogen-Free Irradiated

Cross-linked Polyethylene (XLPE)


Sheath

125℃ low-smoke halogen-free irradiated

cross-linked polyethylene (XLPE)


Product Standards

2PfG 1169/08-2007


Specifications range

1 core:2.5~35 mm²


Sheath color

As per customer requirements

Technical Parameters

Rated Voltage (U₀/U)

AC: 0.6/1kV; DC: 1.5kV


Temperature Rating

Maximum Conductor Operating Temperature: 120℃

Ambient Temperature: -40℃~+90℃

Cable Laying Temperature: Not lower than 0℃ (If the ambient temperature is lower than 0℃, the cable should be preheated)


Minimum Bending Radius

6D

Note: D is the actual outer diameter of the cable


Laying Method

Exposed installation, conduit installation, cable tray installation, etc.
